QUENCH TANK
Quench Bath Controller
We manufacture a variety of control systems that are dependable, user-friendly and networkable (Modbus TCP/IP) for motion, pressure and temperature control applications.
Price: From $9,900 and up depending on the sizes of the Motors and Heaters.
The compact QB121 multi zone temperature/process controller is extremely versatile and user friendly. Very useful when it comes to rebuilding of quench tanks. The machine operator needs to review only those parameters relevant to the particular application (heating and cooling process) during setup. A graphical touch screen and pre programmed function keys display offers optimum process information at a glance. The display identifies the status of outputs, alarms, digital communications (Modbus TCP/IP), and special options. Up to 24 built-in PID loops, including internal auto-tune, ramp-soak programmer and bumpless transfer. Use QB121’s PID loops to economically and efficiently combine accurate process control with the flexibility of a PLC. Use QB121’s smart data tables to log dynamic data and to store production recipes. 120K for recipes parameters, datalogs, etc' and 192K for read-only data, ingredient names, etc´. Simply scroll between pre-programmed recipes or menus, using arrow keys or touchkeys. This enables you to choose and activate a desired task via the HMI immediately, on-site. Press the touchscreen for a few seconds to enter the PLCs Information Mode, providing you with powerful diagnostic capabilities.
Quench Tank
The quenching water bath is made from corrosion proof stainless steel. It has a smooth water circulation pump ensuring ripple-free glycol or water surface and evenly distributed glycol or water temperature. It is controlled by a Vision560 ™ that can maintain a precise water temperatures programmable from 20 to 96 degrees Celsius with +/- 1.0 degree accuracy.

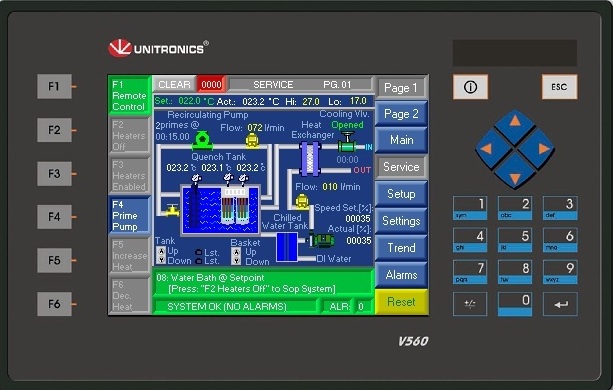

Communication options include TCP/IP Ethernet, cellular, and industrial protocols such as MODBUS and CANopen. The Vision560 ™ is capable of 24 auto-tuned PID loops to control temperature, level, and pressure, while the 320x240 Resolution color touch screen displays data, color trend graphs, and attention-grabbing alarm screens.

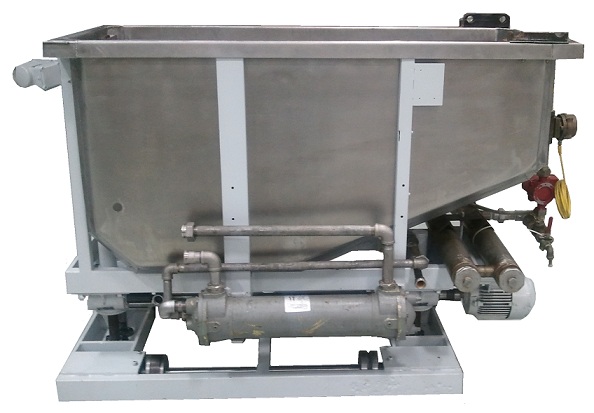

From a Used Stripped Down Unit

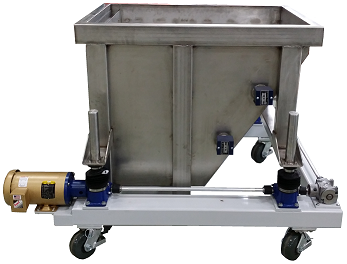

To a Completely Refurbished Unit

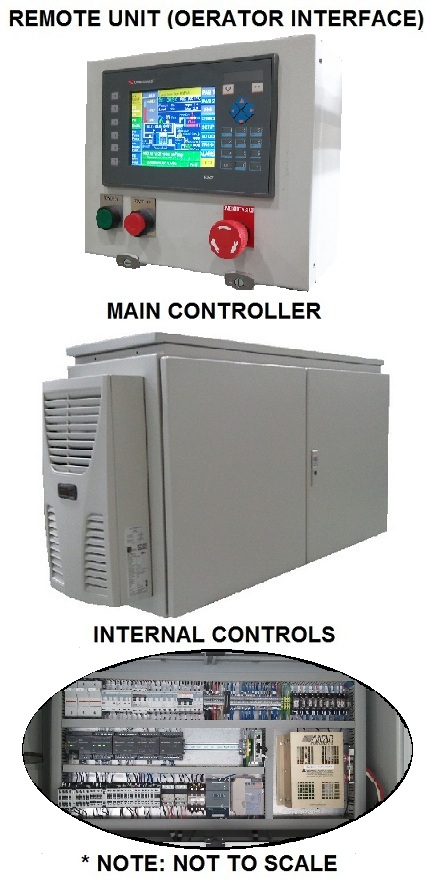

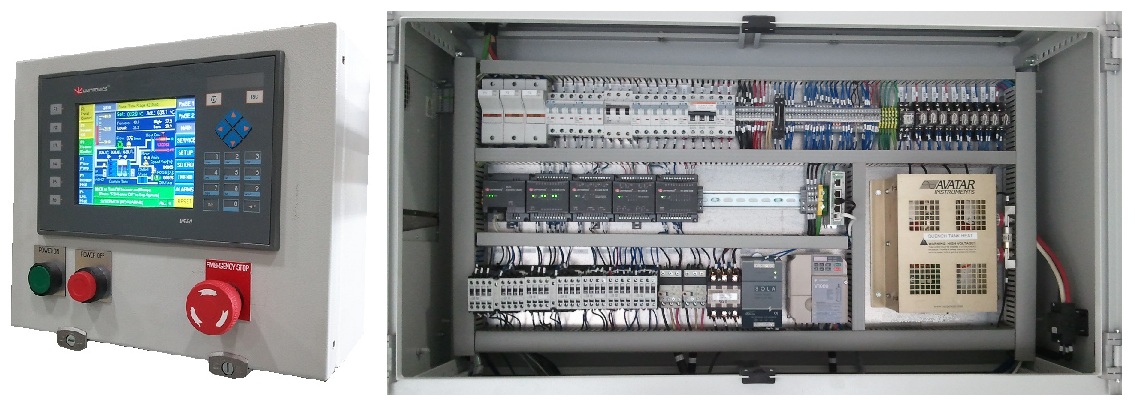

Operator Interface and Control Panel

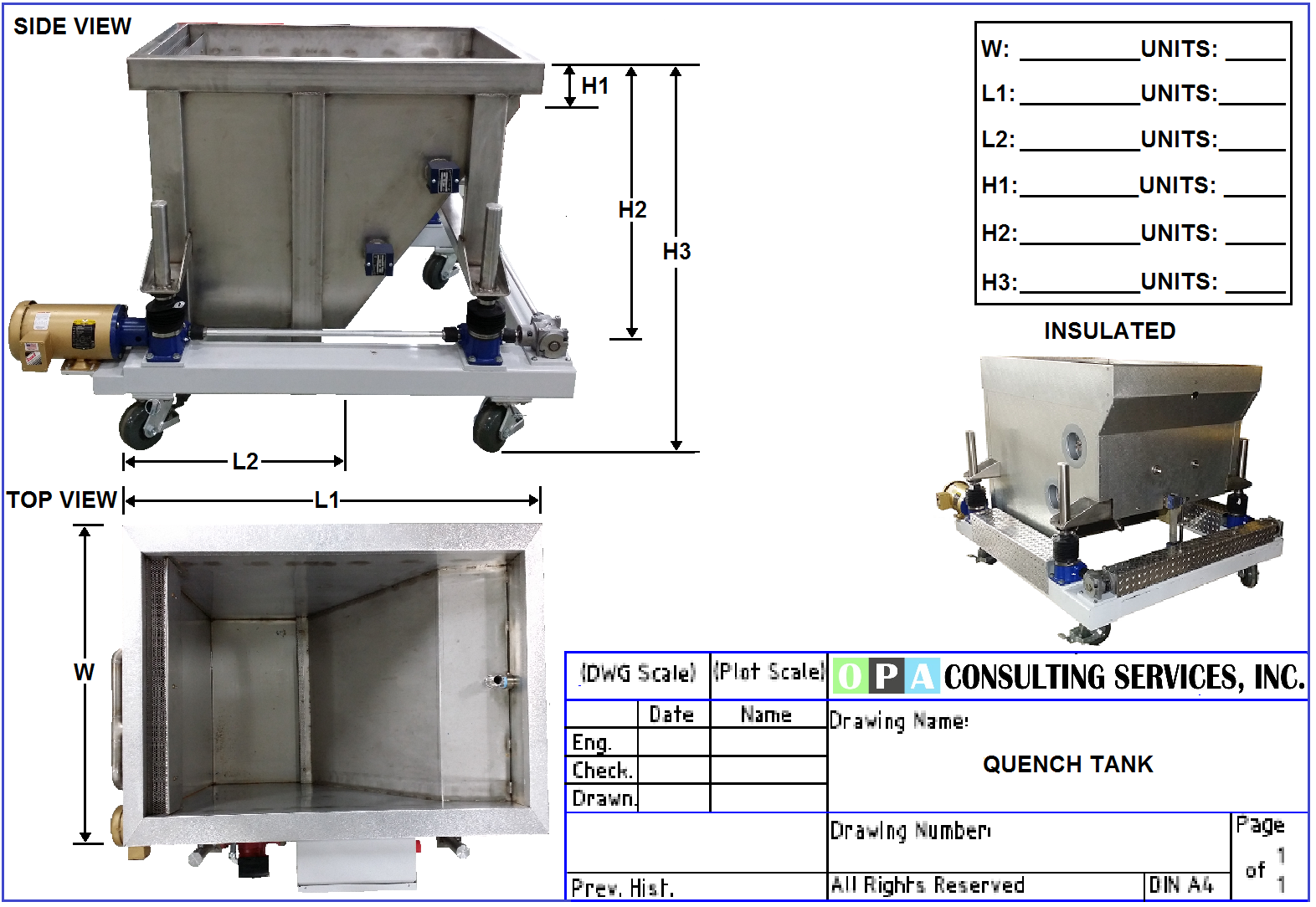

New [Custom] Quench Tank

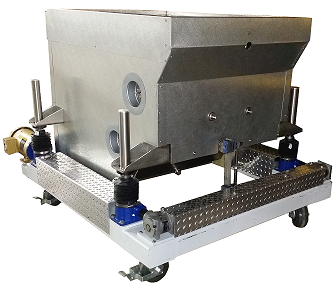

Insulated Quench Tank [High Temp. Glycol]
Auxiliary Recirculation Tank with Heat Exchanger and a Mesh Filter

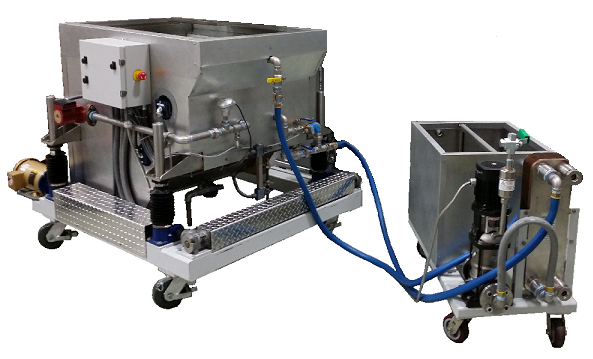

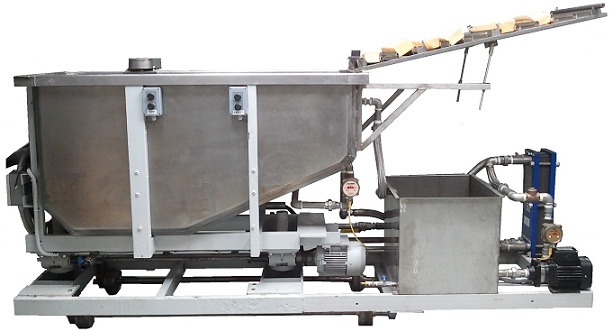

Quench Tank with Detached Auxiliary Recirculation/Overflow Tank

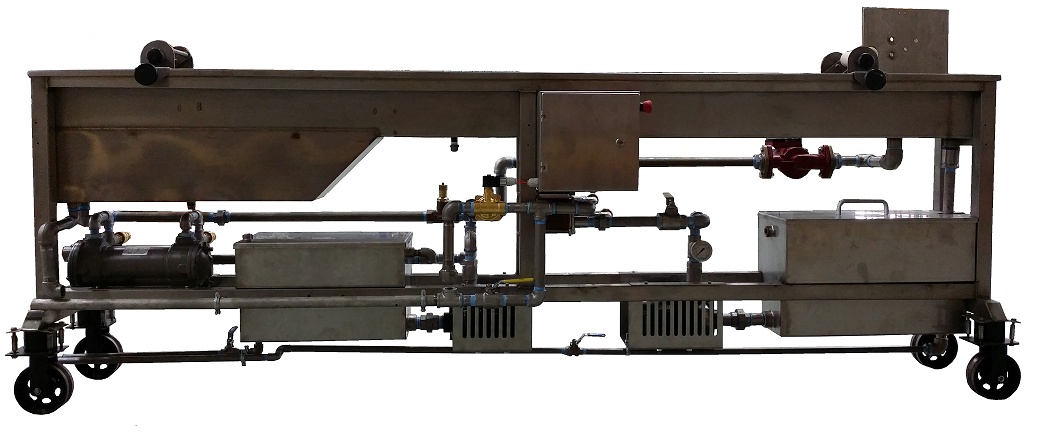

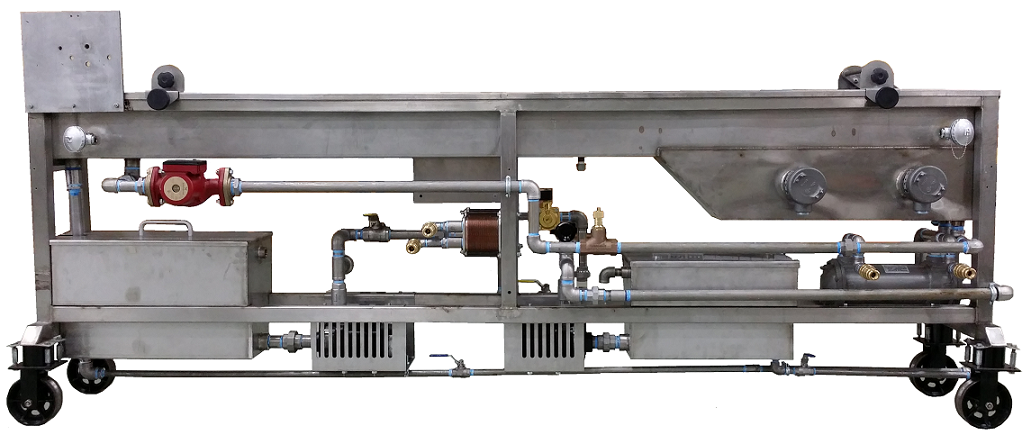

Long and Narrow Quench Tanks [Side 1]
Long and Narrow Quench Tanks [Side 2]
