INFRARED HEATERS AND CONTROLS





Infrared Heaters and Controls

We design Infrared Heating Control Units that are used in a variety of process applications using proven infrared technology. Our goal is to provide you with a complete product line including radiant heaters and heating equipment for process applications. We offer a full spectrum of high and low intensity heat for industrial processes.

Simple inlined Bonder/Dryer Example:

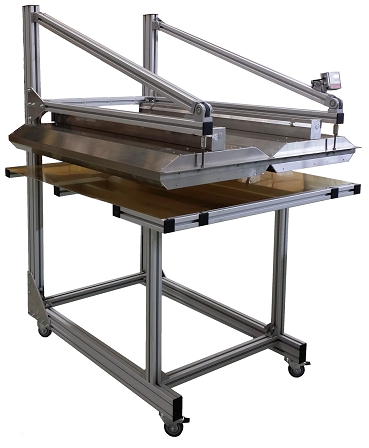

Controller with IR Heaters only:

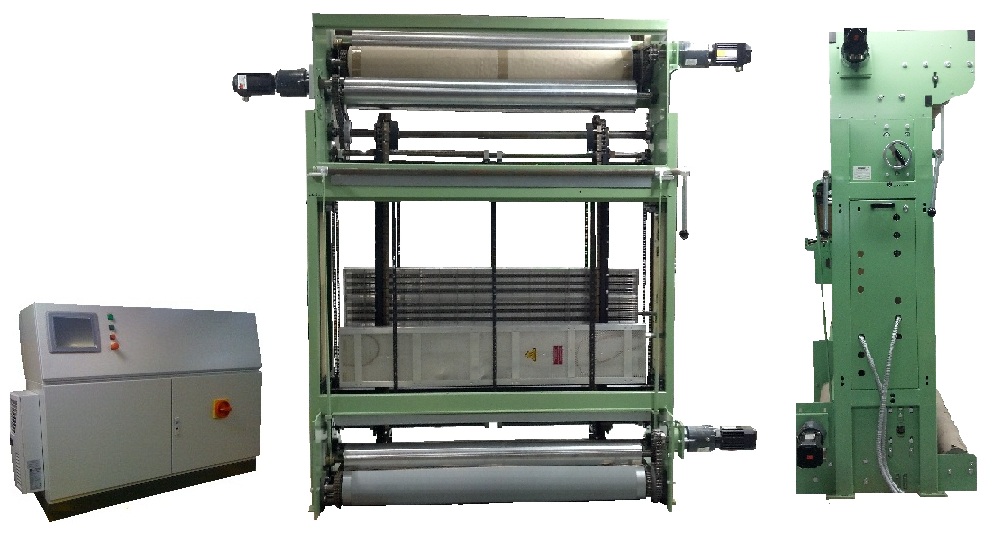

Controller and Bonding unit with built in IR Heaters, aslso a side view with servo motors:

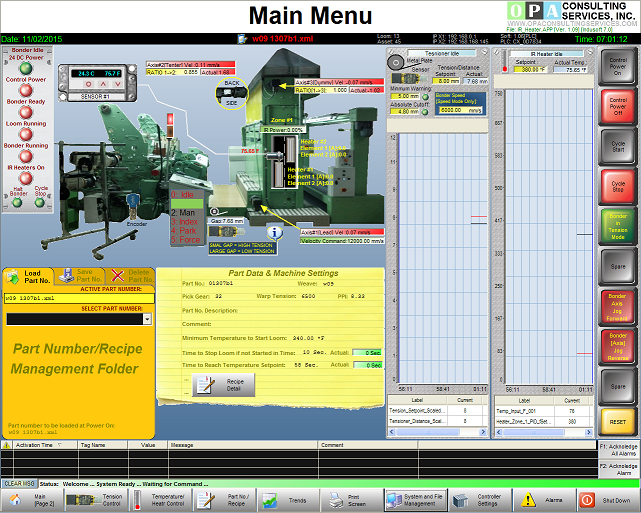

Easy to use HMI screens for controls, recipe managemnt and data recording:

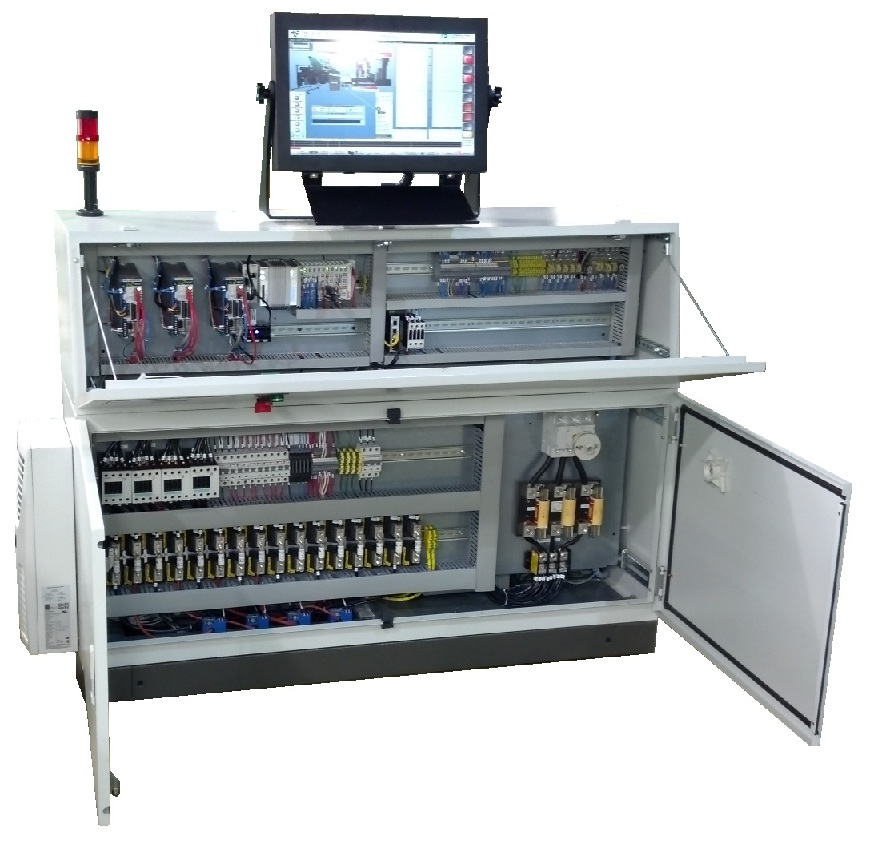

Electrical Components:

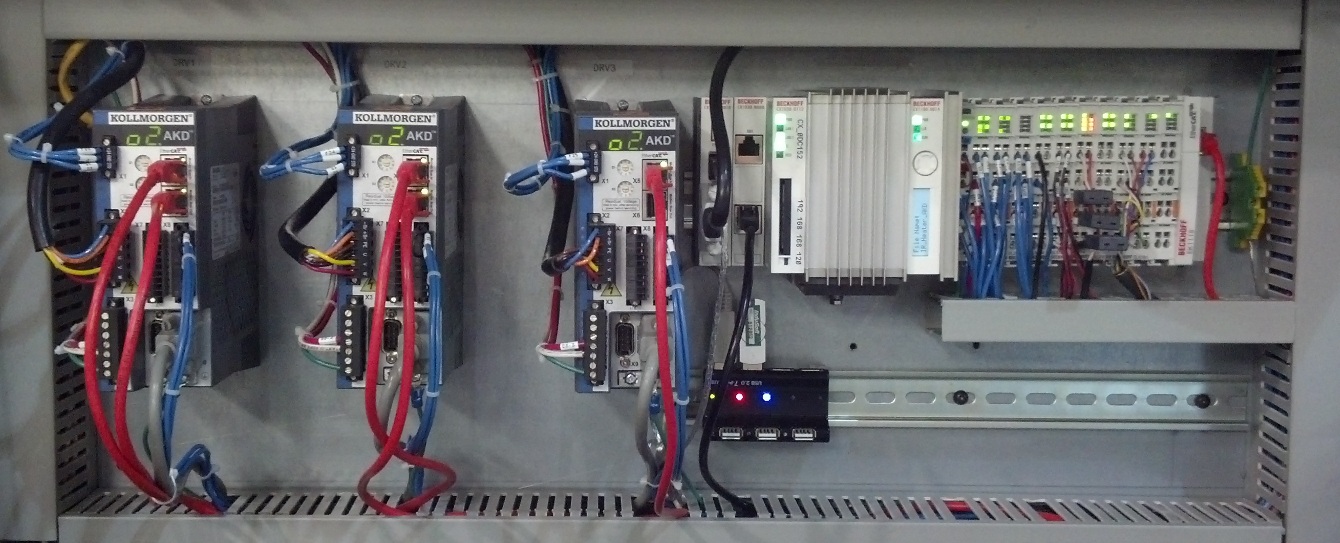

Drives and controller performing coordinate motion using EtherCAT technology to perform coordinated motion such as gear ration between the servo motors to apply proper tension on the material.

Area of use:
· Bonding
· Curing
· Coating
· Lamination
· Thermoforming
PRICE: Please call or send us an E-Mail.

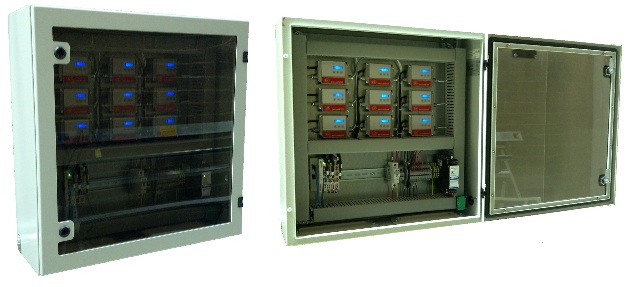

Infrared, Conventional and Gas Ovens Monitor and Control

These Micro-Epsilon IR temperature sensors are most durable, robust and reliable with an extreme long life expectancy. They operate in 250°C environment without cooling and are used in a variety of applications within any industry from R&D to production and process monitoring. We currently use these sensors insside gas curing ovens and in infrared bonding applications.

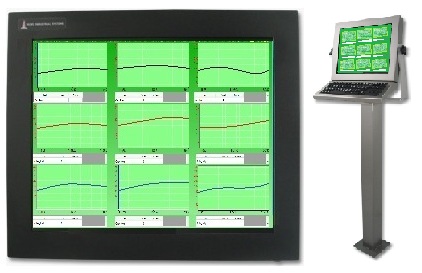

This Windows CE 6.0 controller is used to capture large amounts of data for storage in Microsoft Excel format and perform PID loop control. Data can also be stored in a database at the HMI/SCADA system level. Users can easily store or connect to any SQL database, and new configuration interfaces for FTP and SNMP allow you to quickly configure multimedia alarms and reports that can be sent to e-mail, smartphones, or a printer.

Details:
· Temperature ranges from -50 °C to +1800 °C
· Also suitable for use in potentially explosive atmospheres
· Process monitoring software
· Thermocouple output for easy integration
PRICE: Please call or send us an E-Mail.
