DRAW STANDS
Draw Stand Controller
We manufacture a variety of control systems that are dependable, user-friendly and networkable (Modbus TCP/IP) for motion, pressure and temperature control applications.
Price:From $11,450 and up depending on the Motor size and if Encoder is desired.

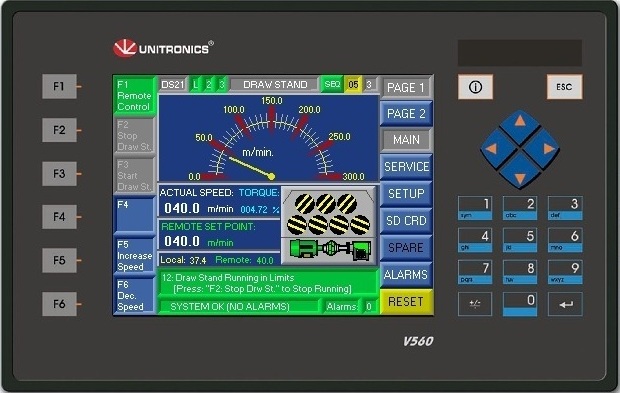

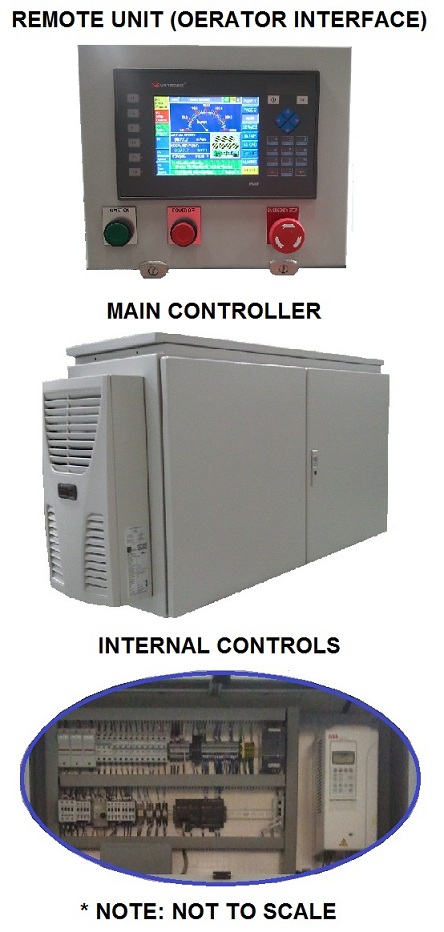

The compact DS007 motion controller is extremely versatile and user friendly. Very useful when it comes to rebuilding of Draw Stands. The machine operator needs to review only those parameters relevant to the particular application during setup. A graphical touch screen and pre programmed function keys display offers optimum process information at a glance. The display identifies the status of outputs, alarms, digital communications (Modbus TCP/IP), and special options. Use DS007’s smart data tables to log dynamic data and to store production recipes. 120K for recipes parameters, datalogs, etc’ and 192K for read-only data, ingredient names, etc’. Simply scroll between pre-programmed recipes or menus, using arrow keys or touchkeys. This enables you to choose and activate a desired task via the HMI immediately, on-site. Press the touchscreen for a few seconds to enter the PLCs Information Mode, providing you with powerful diagnostic capabilities.
Refurbished Extrusion Machinery
The purpose of the Draw Stand is to control the physical properties of the monofilament, such as tensile strength, elongation, elastic modulus, shrinkage, shape retention, and flexibility, are largely determined by the degree of orientation, characterized as stretching and annealing process. Depending on the application and necessary draw force, draw stand is available in 3, 5, or 7 godets running in cantilevered concept with various godet diameter in the range of 270mm ~ 310mm for different production requirement.
The unit has oil immersed gear drive system, precisely engineered to ensure smooth running and reliable operation. Each draw stand is equipped with a Vision560 ™ which communicates with an ABB ACS800 VFD (Encoder Feedback) for precise speed control.
Various configurations are available depending on the application and necessary draw force. They come in 3, 5, or 7 godets running in cantilevered concept with various godet diameter. Depending on the product the godet diameter can range from 270mm to 310mm.
Communication options include TCP/IP Ethernet, cellular, and industrial protocols such as MODBUS and CANopen. The Vision560 ™ is capable of 24 auto-tuned PID loops to control temperature, level, and pressure, while the 320x240 Resolution color touch screen displays data, color trend graphs, and attention-grabbing alarm screens.

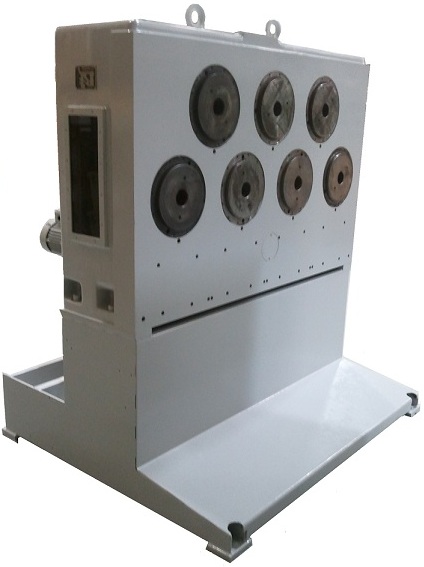

From a Stripped Down Unit

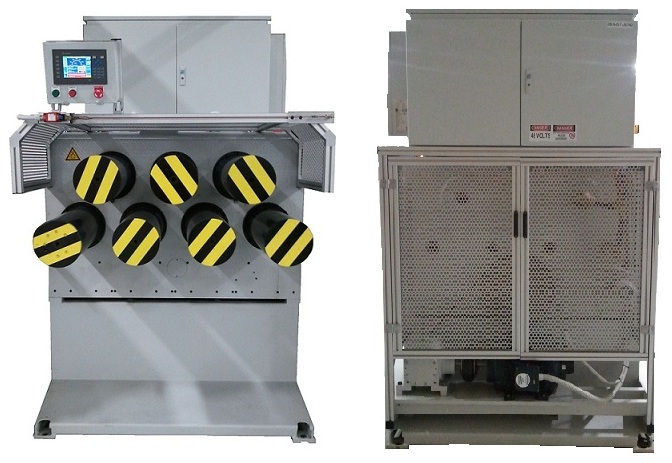

To a Completely Refurbished Unit [Front & Back]
