SIMPLE PUMP CONTROLLER

· Self Cleaning Multi-Hydrocyclone

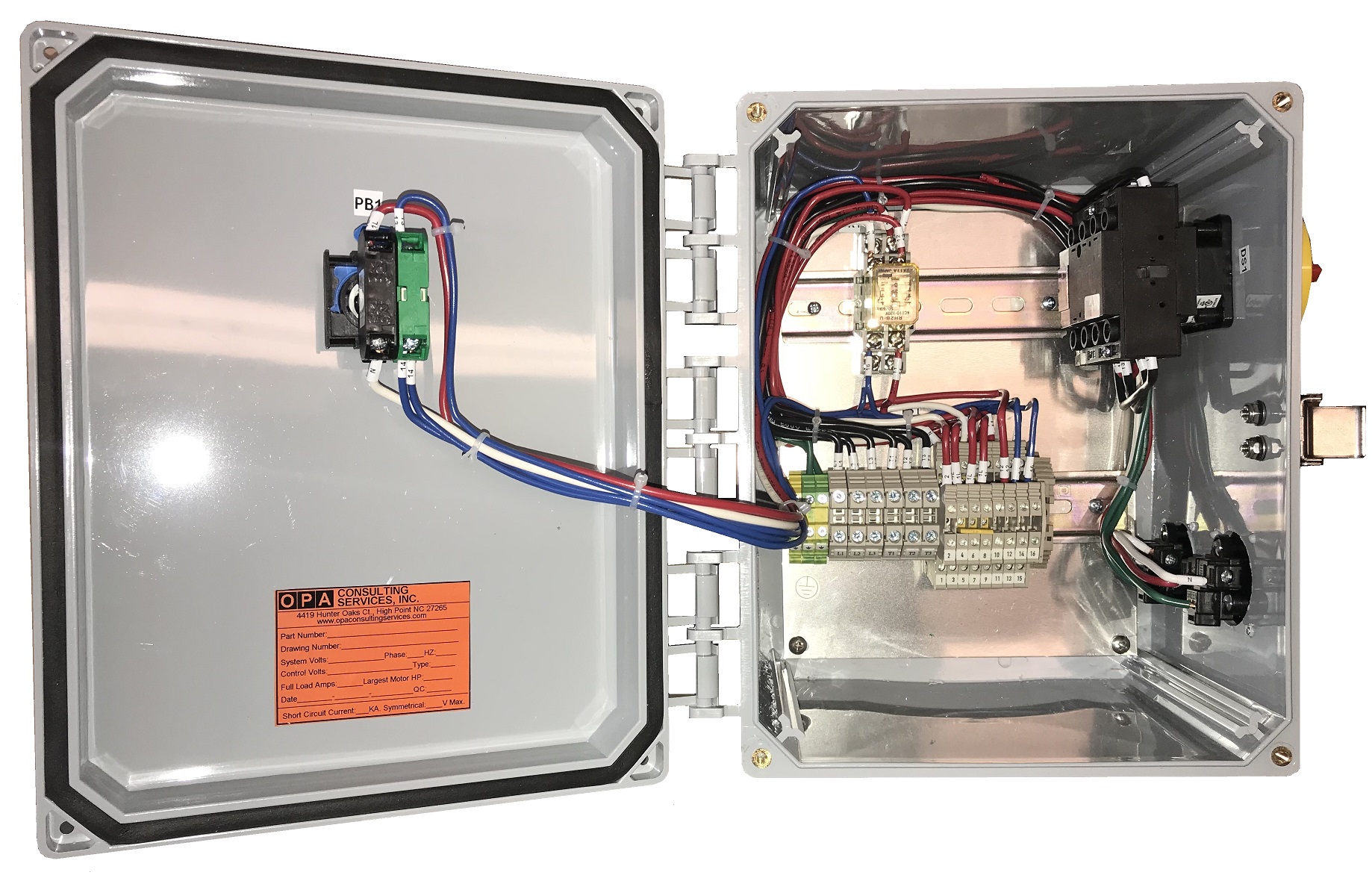

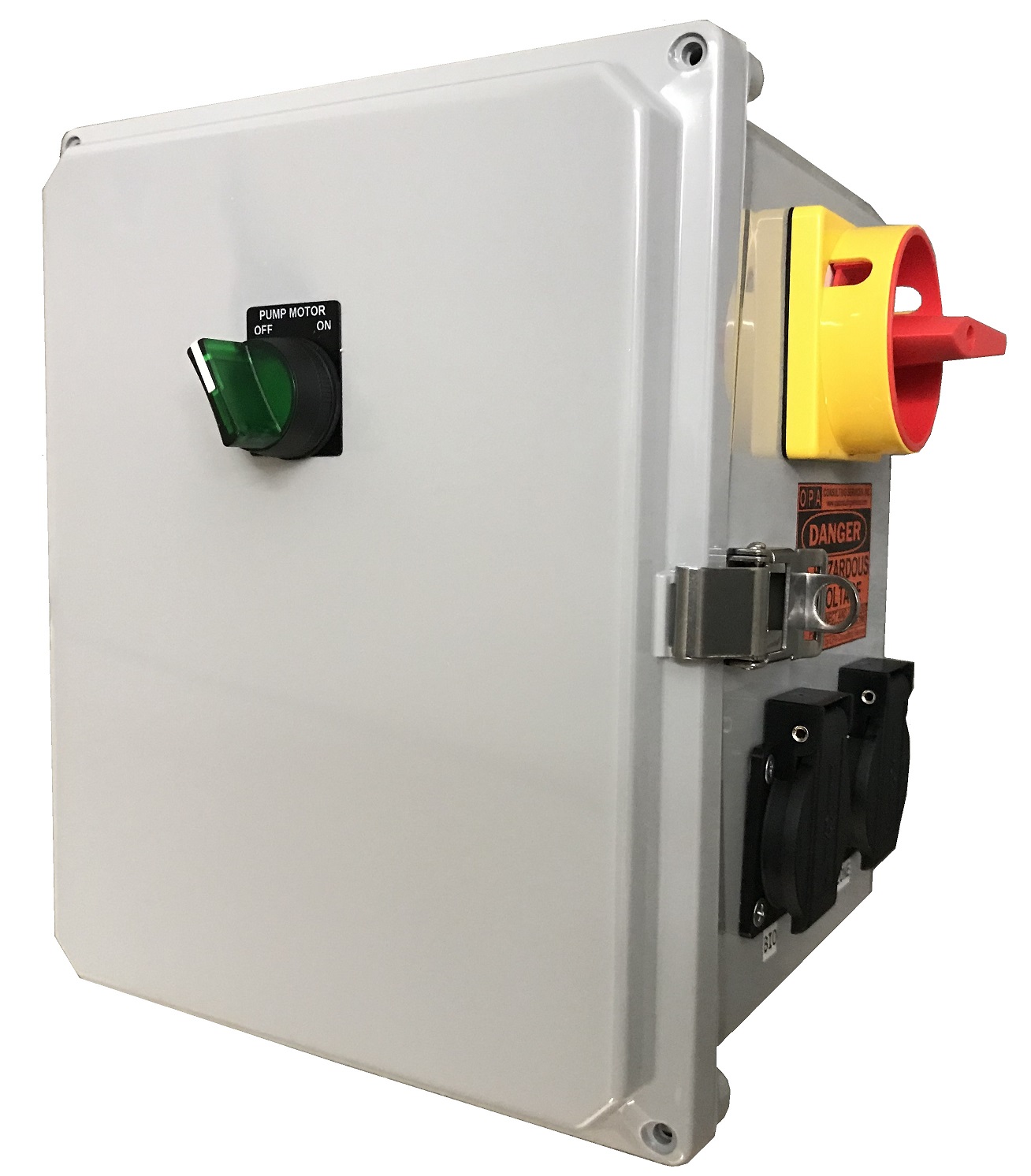

Simple Pump Controller [OPA-REC-SPC-001]

Self-Contained unit with self-cleaning filter and onboard ozone recirculation. Up to 60 gallons of filtered water per minute. Filtration down to 25 microns absolute. NEMA IV Rated Variable Speed Drive controls pump motor. Epoxy coated aluminum filter housing. Ozone recirculation system optional with oxygen concentrator, ozone generator, ozone injector. Ozone removes VOCs, organics, biological and hydrocarbons from the treatment water providing disinfection, odor and color removal.

OP1:REC/000545

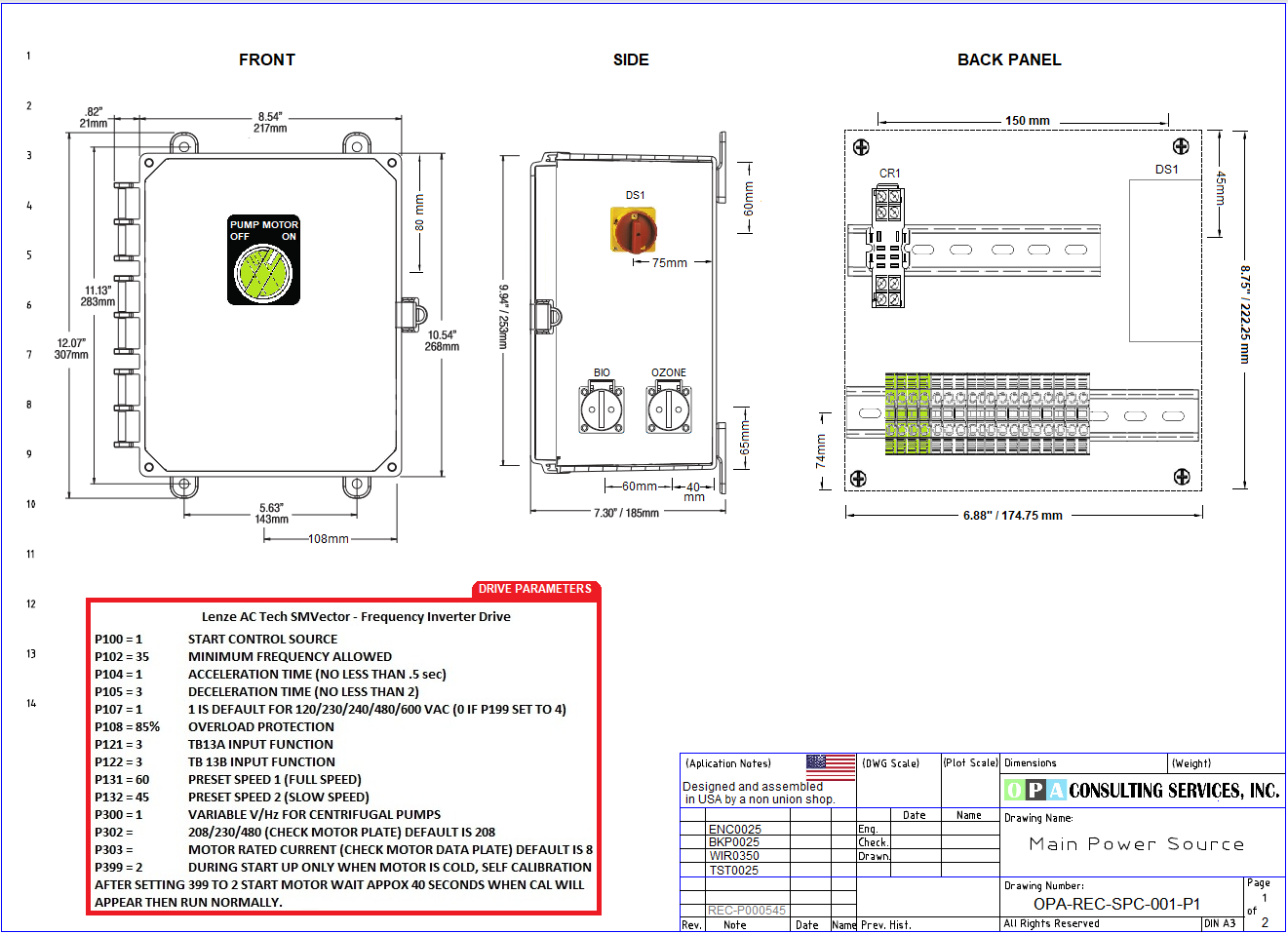

Panel Drawing ... Use the Right Click on your mouse and select Save Picture As... to Copy it to your PC for better viewing.

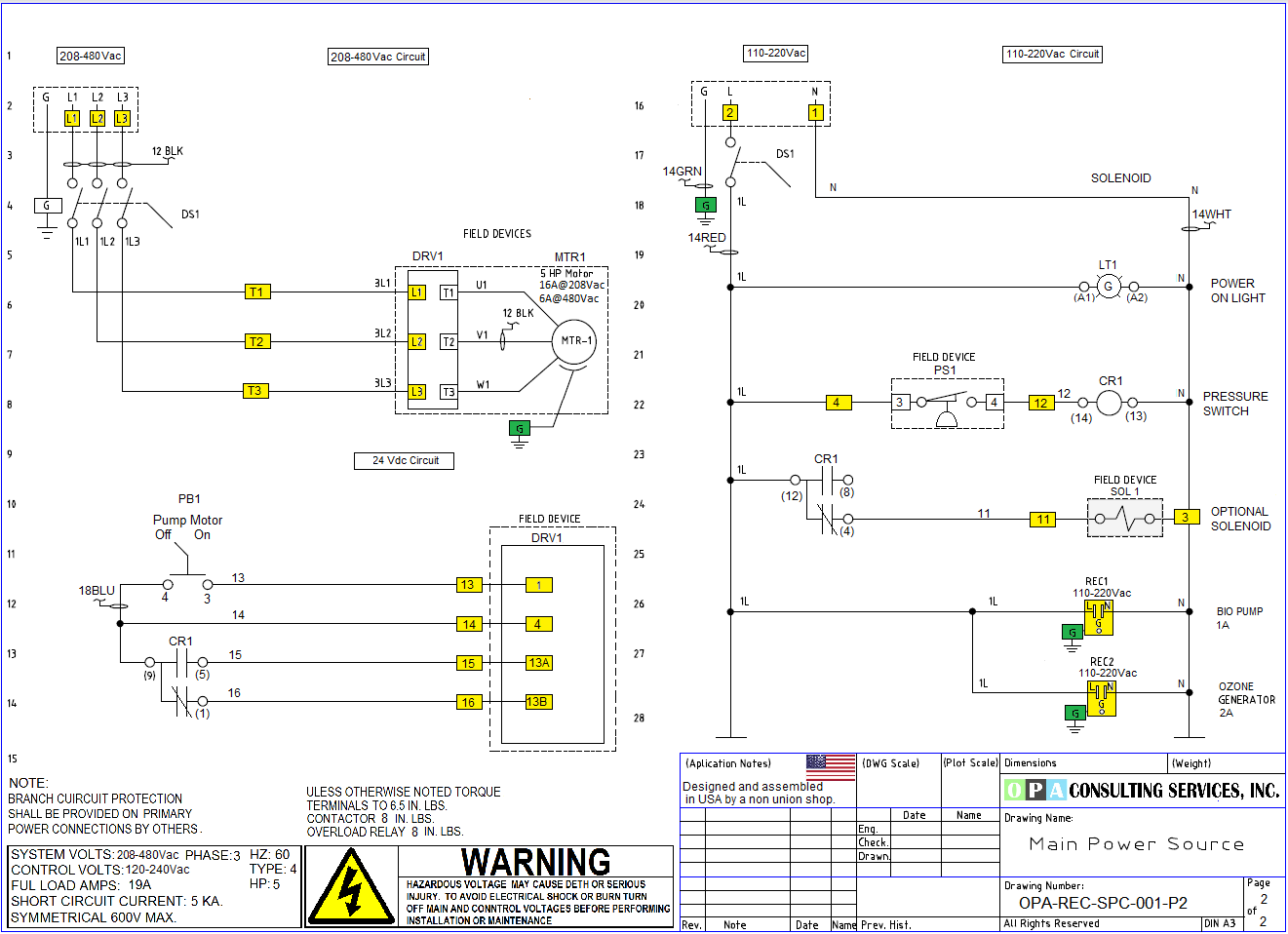

Panel Drawing ... Use the Right Click on your mouse and select Save Picture As... to Copy it to your PC for better viewing.

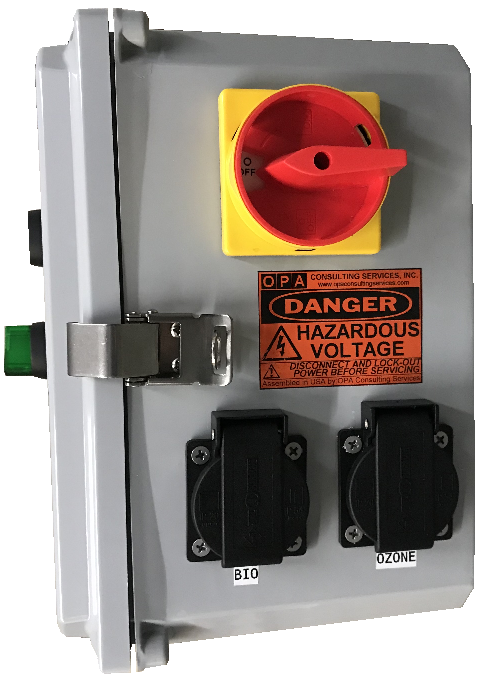

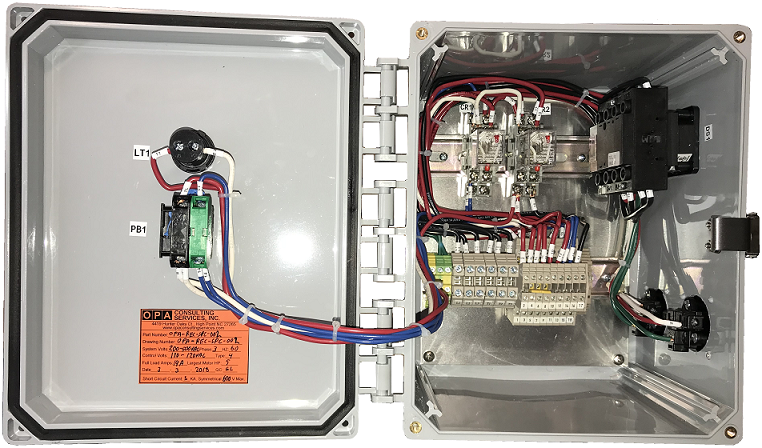

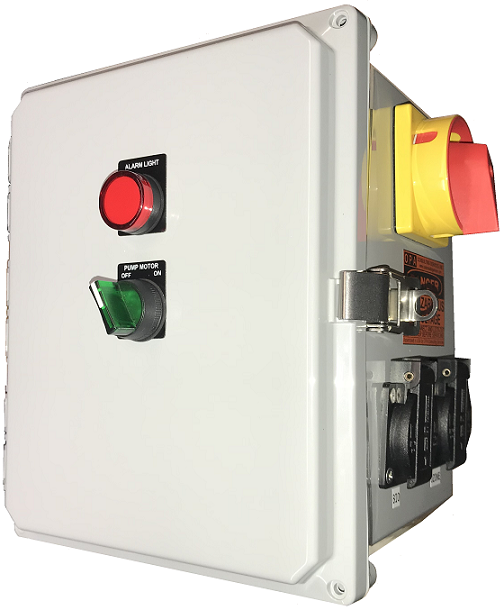

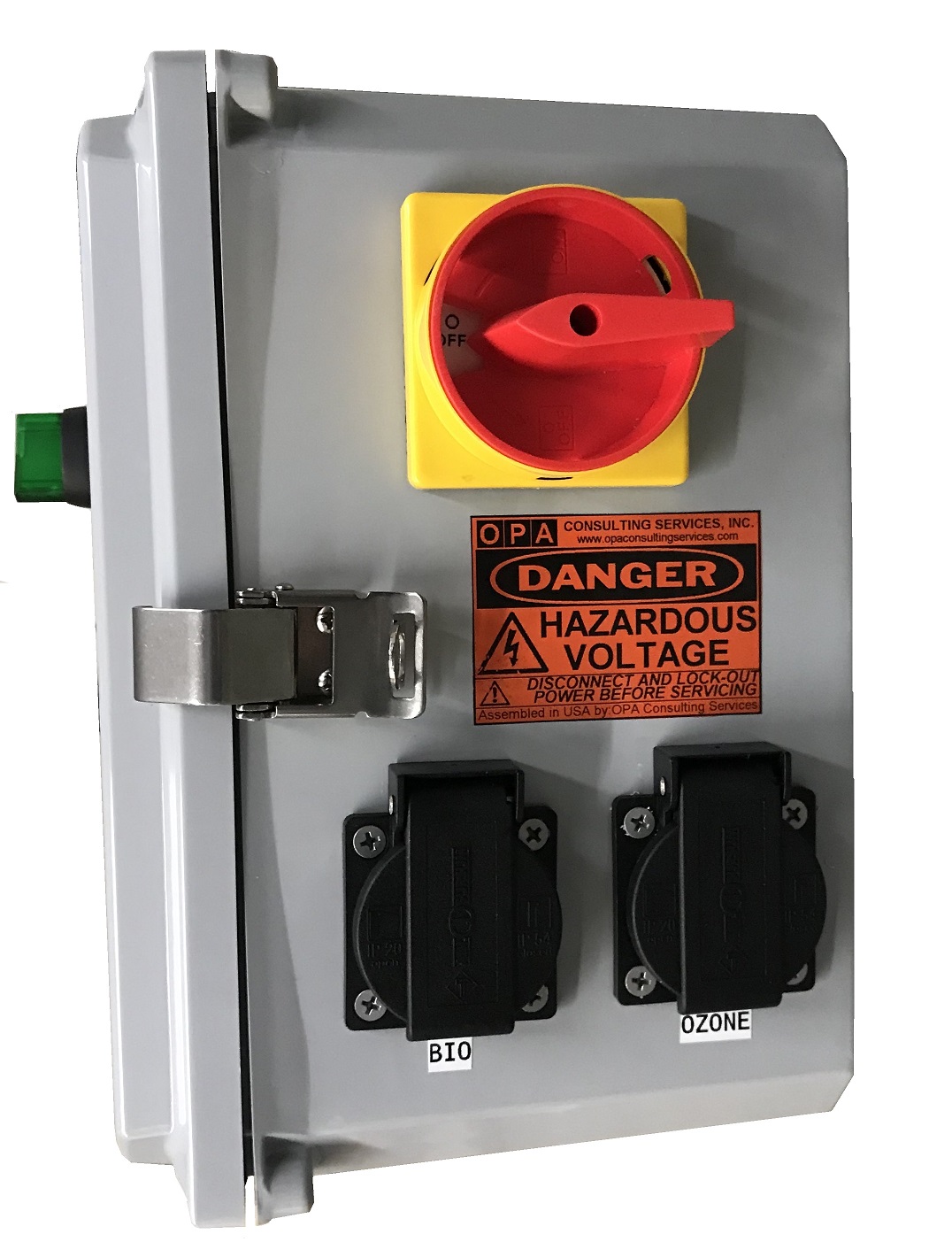

Simple Pump Controller Series II [OPA-REC-SPC-002]

Self-Contained unit with self-cleaning filter and onboard ozone recirculation. Up to 60 gallons of filtered water per minute. Filtration down to 25 microns absolute. NEMA IV Rated Variable Speed Drive controls pump motor. Epoxy coated aluminum filter housing. Ozone recirculation system optional with oxygen concentrator, ozone generator, ozone injector. Ozone removes VOCs, organics, biological and hydrocarbons from the treatment water providing disinfection, odor and color removal. The Simple Pump Controller Series II has additional features such as a Pressure Sensor input, Alarm LED enunciator and Bypass Valve Solenoid control.

OP2:REC/000700

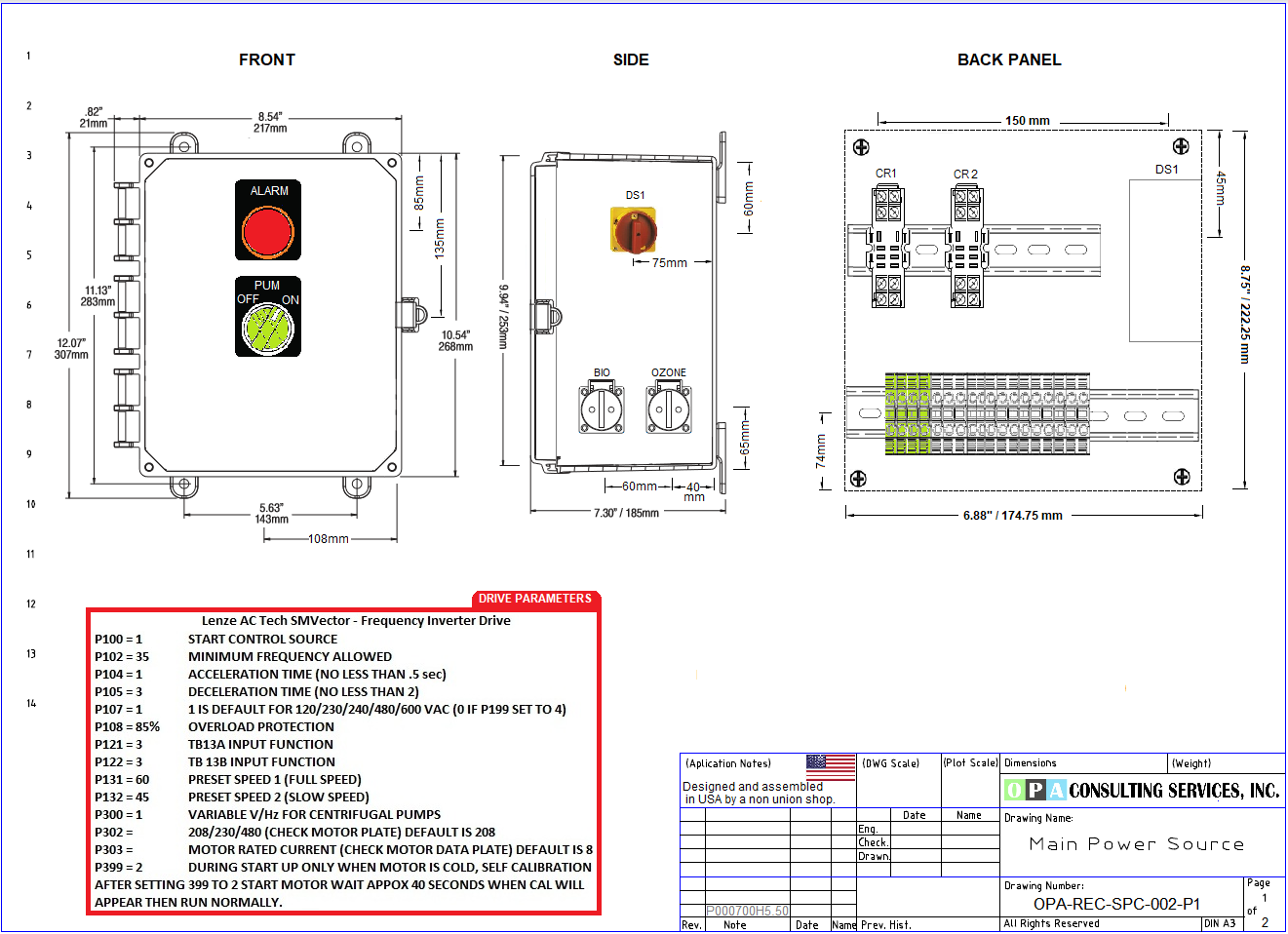

Panel Drawing ... Use the Right Click on your mouse and select Save Picture As... to Copy it to your PC for better viewing.

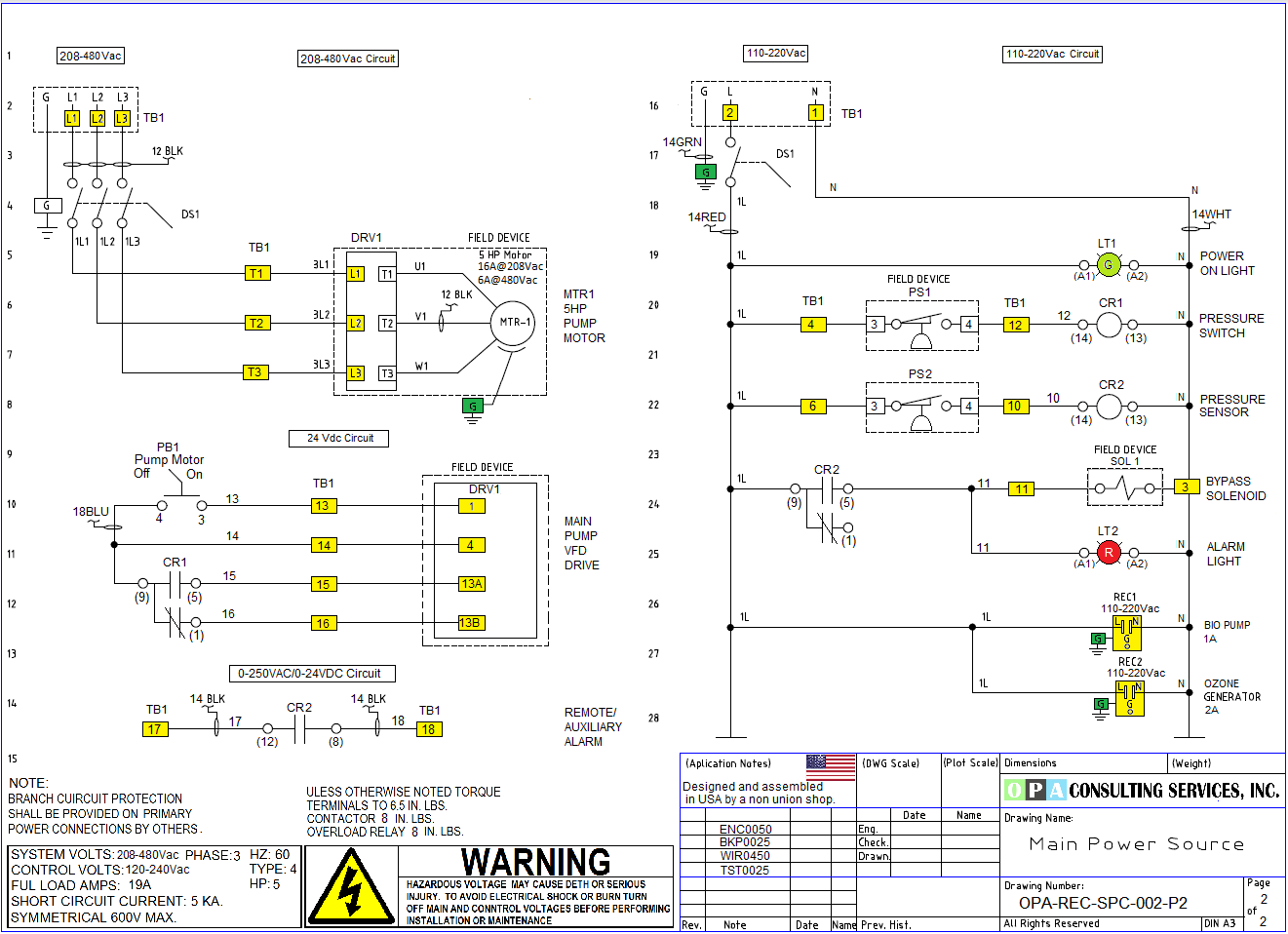

Panel Drawing ... Use the Right Click on your mouse and select Save Picture As... to Copy it to your PC for better viewing.

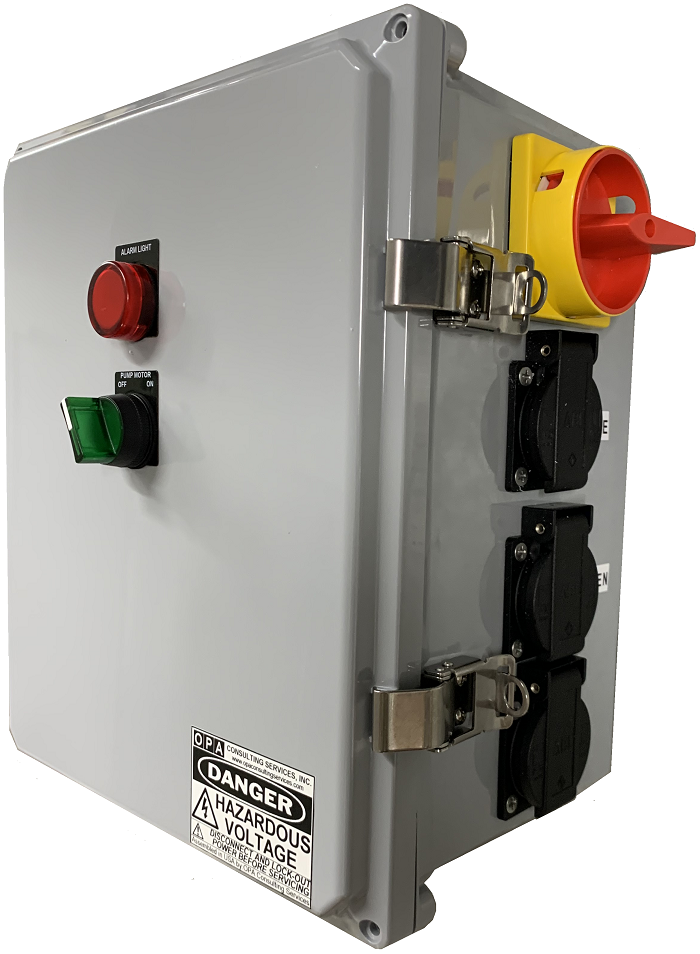

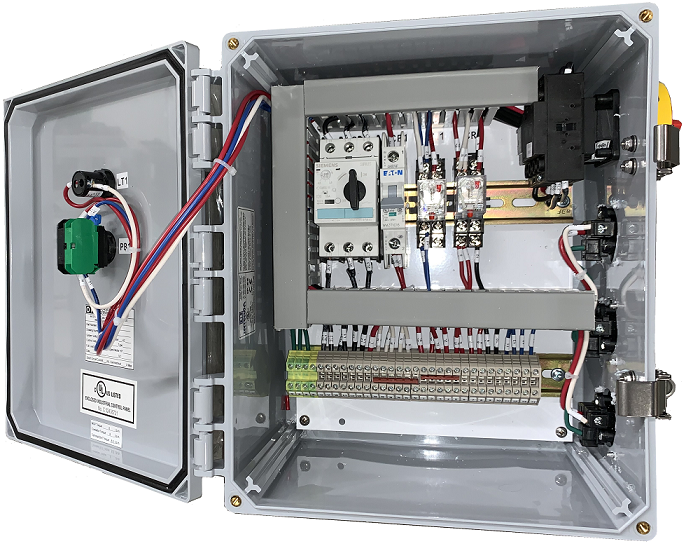

Simple Pump Controller Series III [OPA-REC-SPC-003] UL

Self-Contained unit with self-cleaning filter and onboard ozone recirculation. Up to 60 gallons of filtered water per minute. Filtration down to 25 microns absolute. NEMA IV Rated Variable Speed Drive controls pump motor. Epoxy coated aluminum filter housing. Ozone recirculation system optional with Oxygen concentrator, Ozone generator & injector and Bio. Ozone removes VOCs, organics, biological and hydrocarbons from the treatment water providing disinfection, odor and color removal. The Simple Pump Controller Series II has additional features such as a Pressure Sensor input, Alarm LED enunciator and Bypass Valve Solenoid control.

OP2:REC/000995

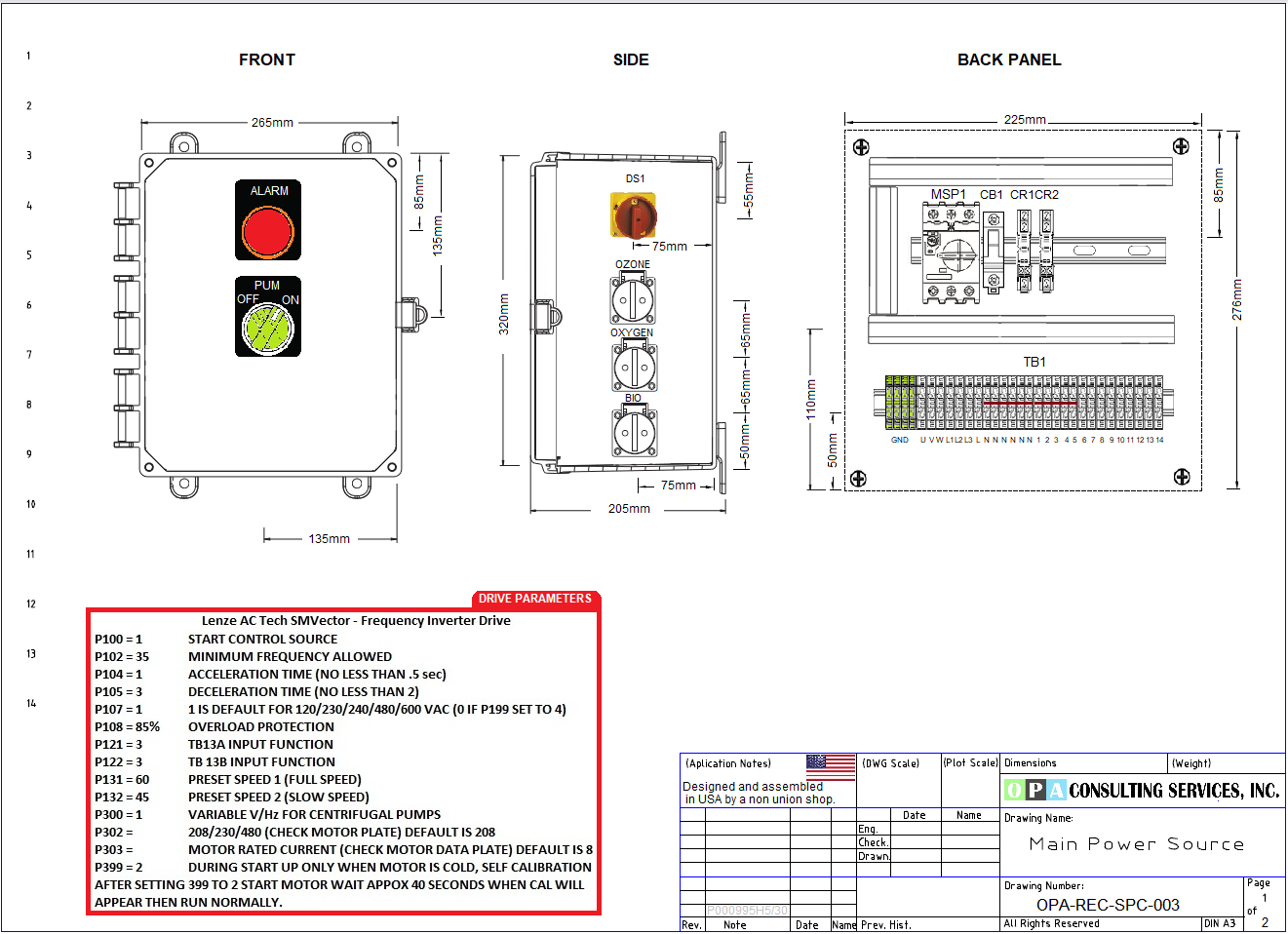

Panel Drawing ... Use the Right Click on your mouse and select Save Picture As... to Copy it to your PC for better viewing.

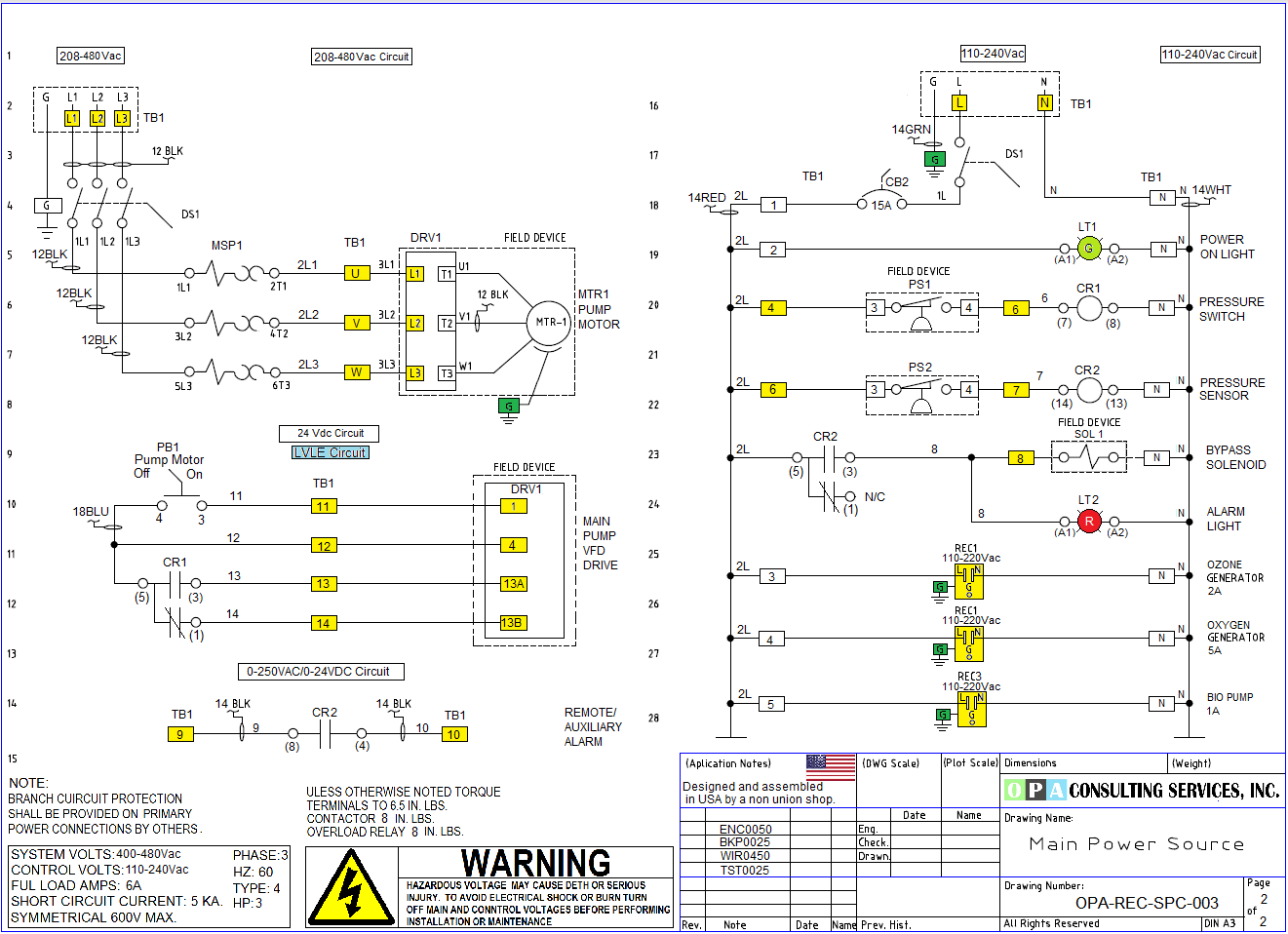

Panel Drawing ... Use the Right Click on your mouse and select Save Picture As... to Copy it to your PC for better viewing.





Simple Pump Controller Series IV [OPA-REC-SPC-004] UL

Self-Contained unit with self-cleaning filter and onboard ozone recirculation with integrated VFD inside the control panel. Up to 60 gallons of filtered water per minute. Filtration down to 25 microns absolute. NEMA IV Rated Variable Speed Drive controls pump motor. Epoxy coated aluminum filter housing. Ozone recirculation system optional with Oxygen concentrator, Ozone generator & injector and Bio. Ozone removes VOCs, organics, biological and hydrocarbons from the treatment water providing disinfection, odor and color removal. The Simple Pump Controller Series 4 has additional features such as a Pressure Sensor input, Alarm LED enunciator and Bypass Valve Solenoid control.

OP2:REC/001750

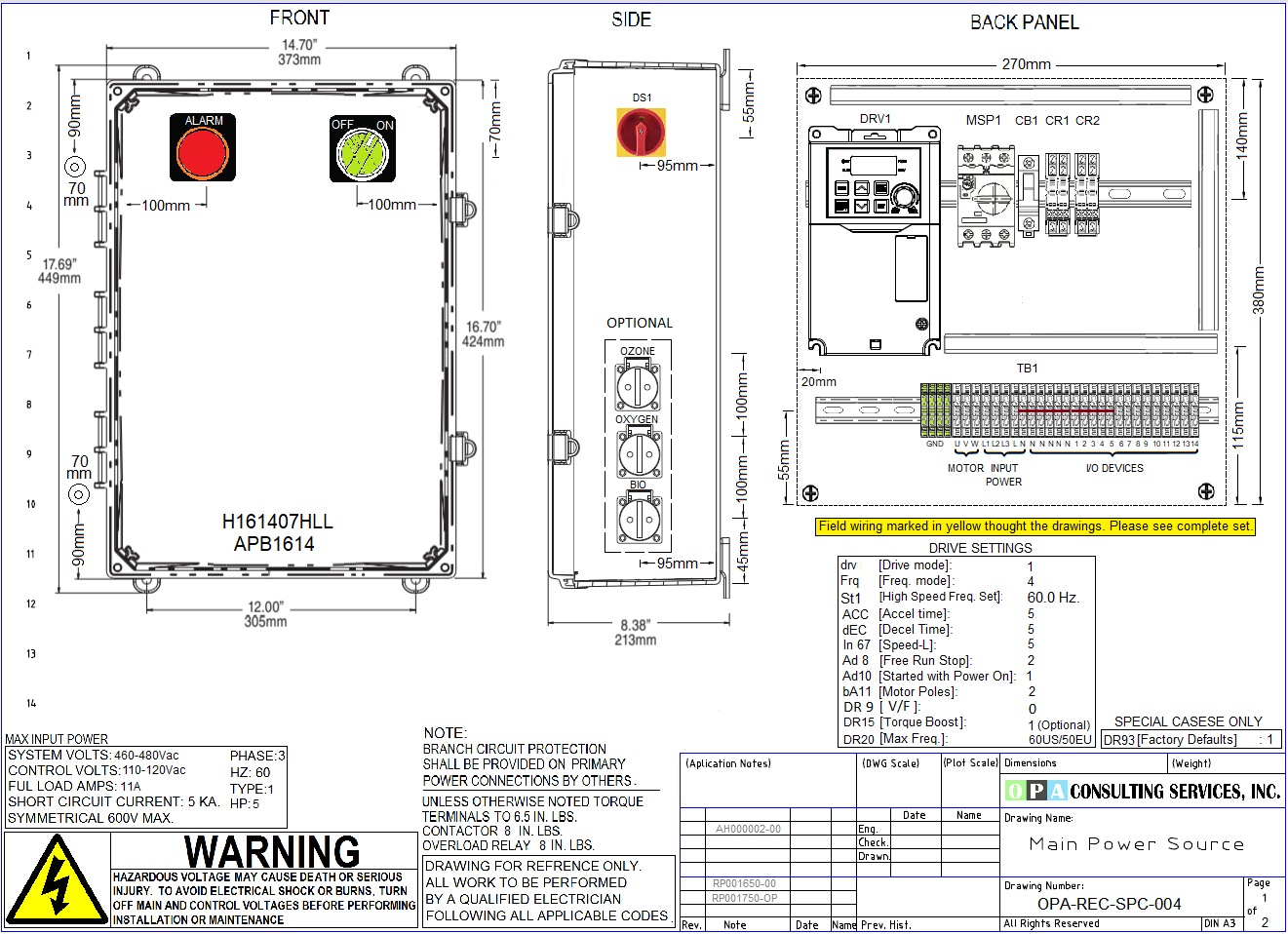

Panel Drawing ... Use the Right Click on your mouse and select Save Picture As... to Copy it to your PC for better viewing.

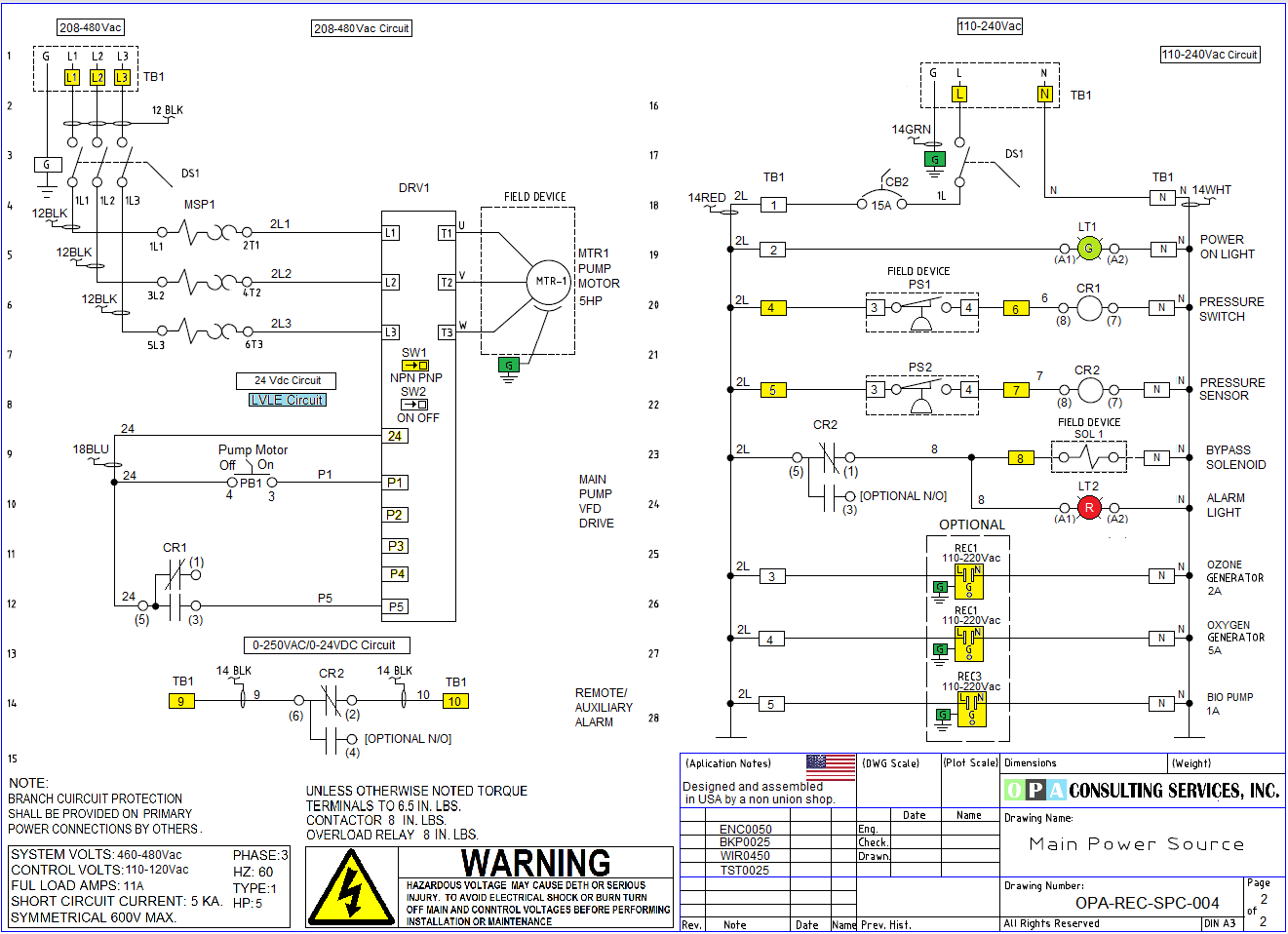

Panel Drawing ... Use the Right Click on your mouse and select Save Picture As... to Copy it to your PC for better viewing.

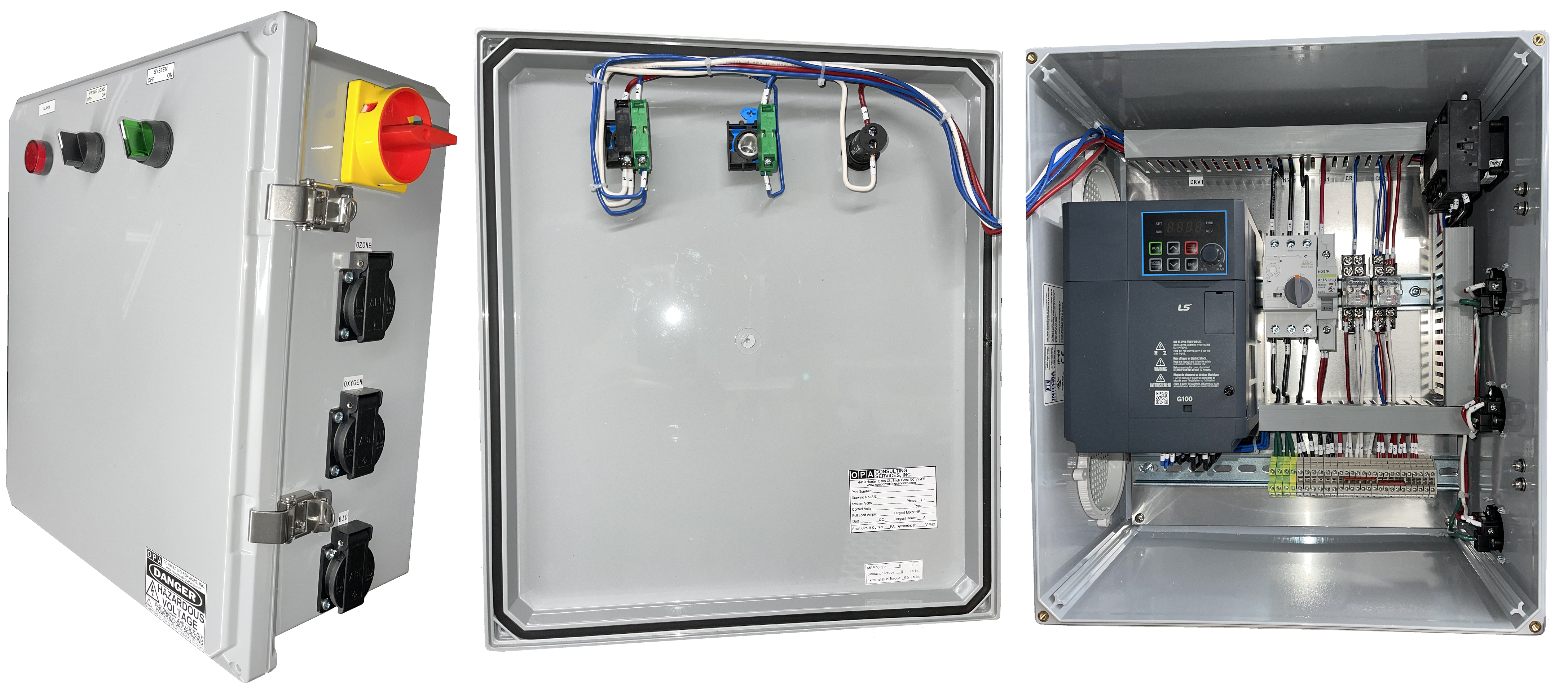

Simple Pump Controller Series V [OPA-REC-SPC-005] UL

Self-Contained unit with self-cleaning filter and onboard ozone recirculation with integrated VFD inside the control panel. Up to 60 gallons of filtered water per minute. Filtration down to 25 microns absolute. NEMA IV Rated Variable Speed Drive controls pump motor. Epoxy coated aluminum filter housing. Ozone recirculation system optional with Oxygen concentrator, Ozone generator & injector and Bio. Ozone removes VOCs, organics, biological and hydrocarbons from the treatment water providing disinfection, odor and color removal. The Simple Pump Controller Series 5 has additional features such as a Pressure Sensor input, Alarm LED enunciator, Bypass Valve Solenoid control and Prims Loss bypass selsctor switch.

OP2:REC/001750

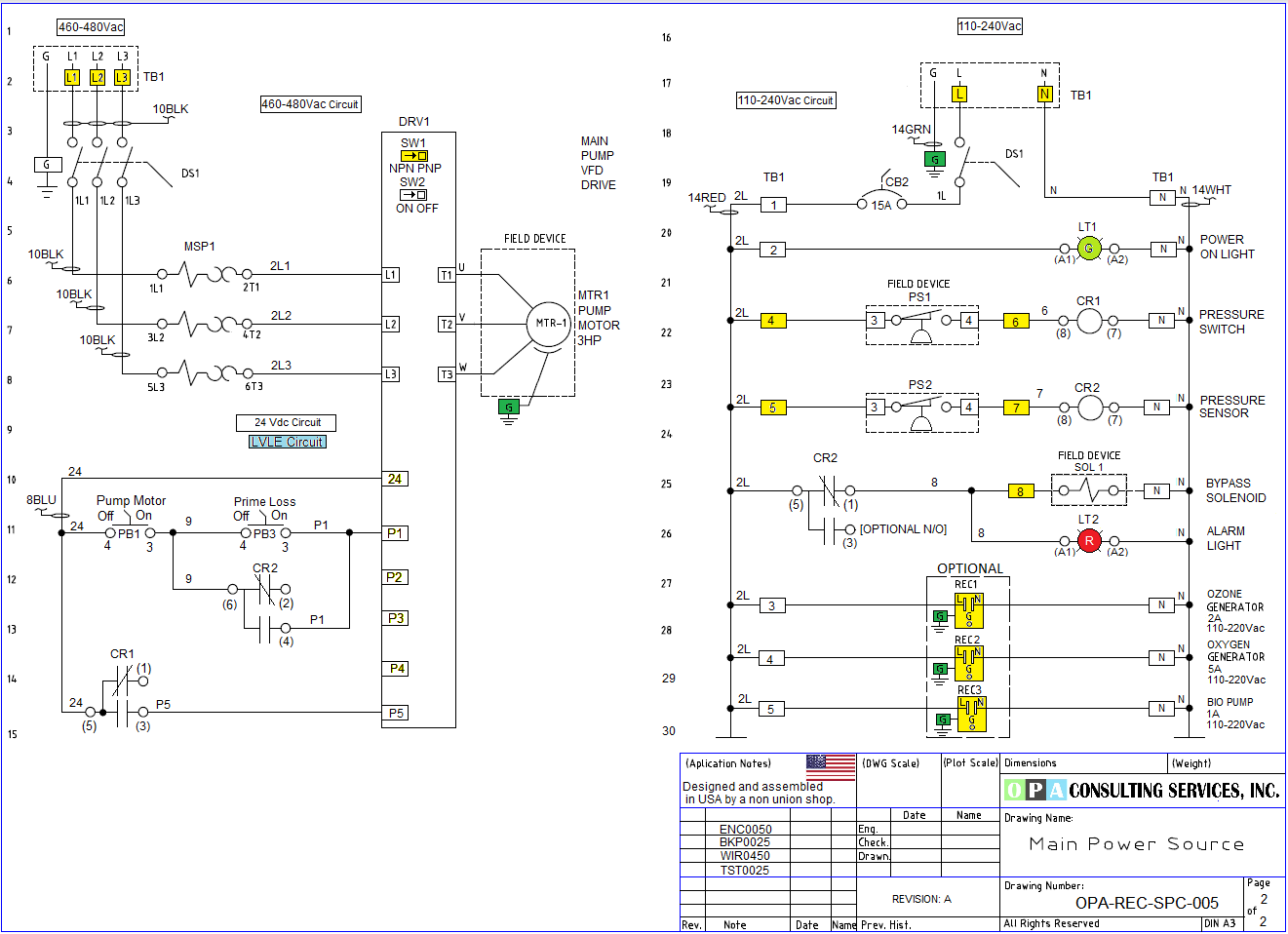

Panel Drawing ... Use the Right Click on your mouse and select Save Picture As... to Copy it to your PC for better viewing.

Panel Drawing ... Use the Right Click on your mouse and select Save Picture As... to Copy it to your PC for better viewing.





Please call for pricing on a complete system.
