Standard and Custom Build Controls

· Small Batch Runs · Build to Print





1H-120V-1P-E-NO

Assembled NEMA 4, 4X, 13 thermoplastic/steel (optional), flush START pushbutton, green, with 1 N.O. contact, flush STOP pushbutton, red, with 1 N.C. contact, LED full voltage indicator and Emergency Stop Station, 40mm latch-in twist-to-release, red E-STOP, 1 N.C. contact. One contactor/relay for control power OFF/ON and manual restart after power loss.

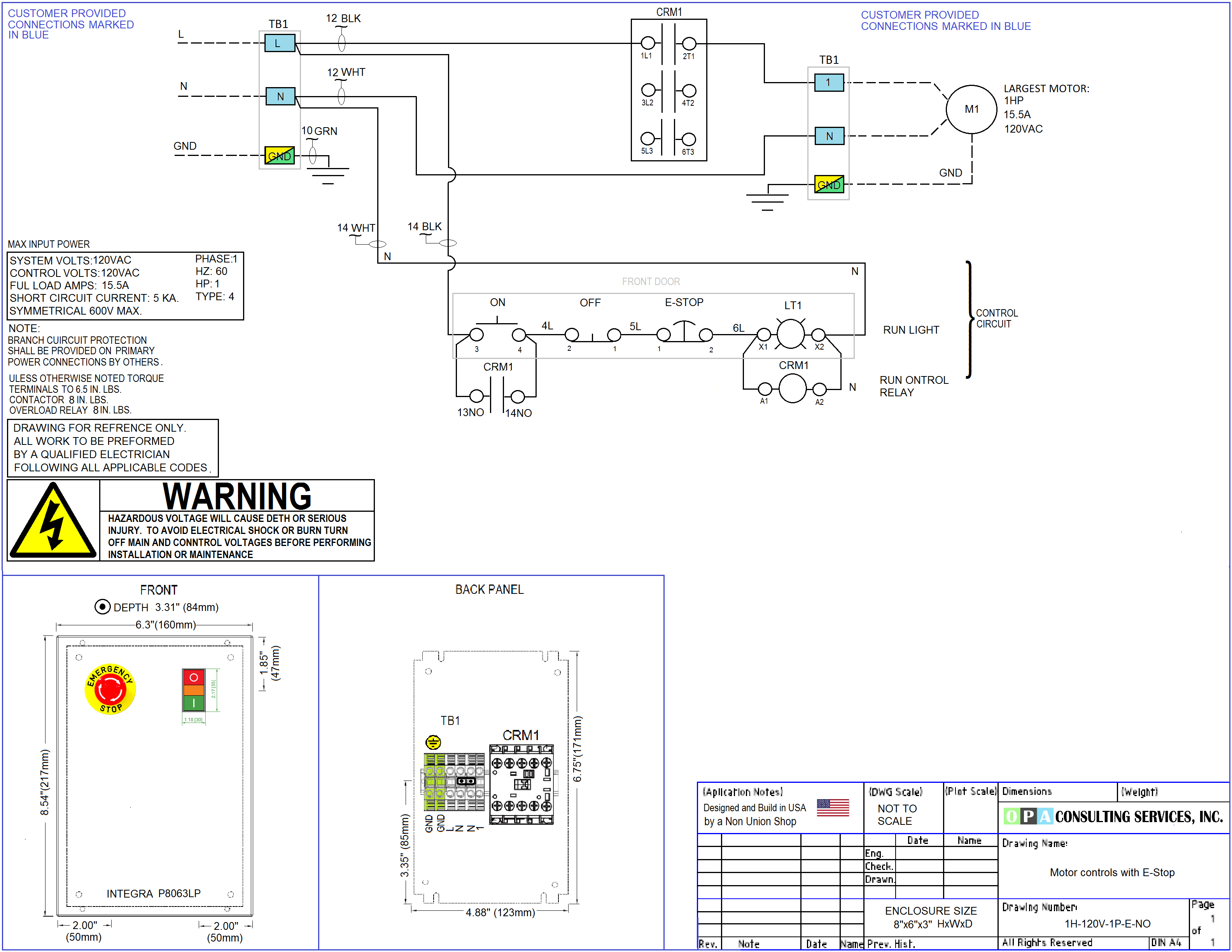

Panel Drawing ... Use the Right Click on your mouse and select Save Picture As... to Copy it to your PC for better viewing.

PART NUMBER: 1H-120V-1P-E-NO
PRICE: $395.50
DESCRIPTION: FLUSH GREEN PB START AND RED PB STOP W/40MM LATCH TWIST-RELEASE. ABS ENC.
